How to to export only new files and
images in your scheduled export tasks
- Professional Edition required
The SQL Image Viewer Professional Edition license includes a
command line interface (SQLImageViewerCmd.exe) you can
use to automate your export tasks. Please see this page on
how to set up an automated export task using the Windows
Task Scheduler.
When you set up the export settings in the GUI, the same
query will be ran each time, and most likely the same data
set(s) will be returned. SQL Image Viewer supports dynamic
queries, where the SQL statement can be modified at run time.

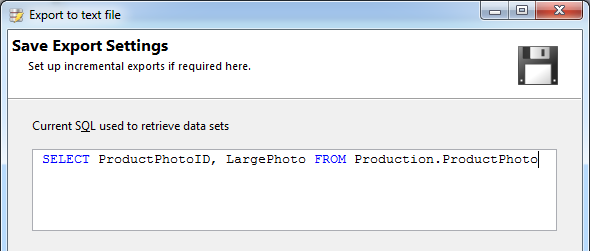

Let's use the following query as a starting point.
Option 1 - provide a file that contains a
SQL query
You do this using the <file> tag. Instead of explicitly providing
the SQL command to run, you can provide the name of a file
that contains the SQL command to use. You can use this
option when you have other applications that can dynamically
generate the SQL command to use. Note that the query needs
to contain any columns that you may have used to name the
exported files.

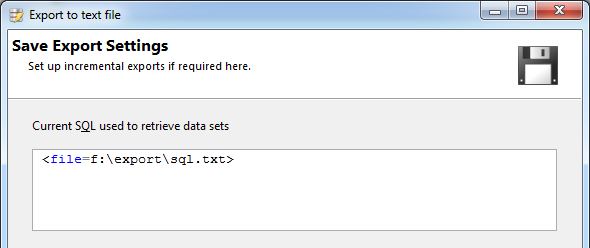

E.g. if your SQL command is stored in the f:\export\sql.txt file,
you would modify the SQL to this:
Option 2 - provide a list of integer values
from a file
You do this using the <integerlist> tag. Say that you only want
to export items with specific ProductPhotoID values, and
another application will provide this list of values. The
requirement is that the application provides one value per line
e.g.
56
75
89

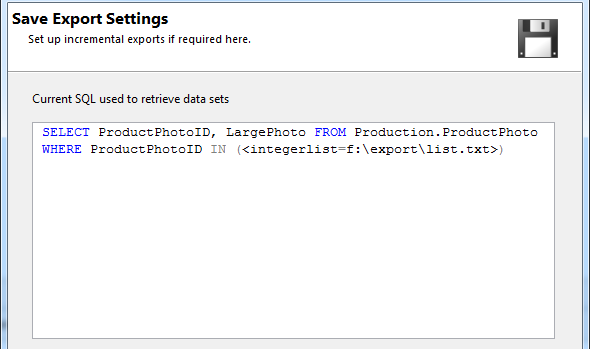

and stores this list in a file. For our example, let's assume the
list is stored in the f:\export\list.txt file. You would then need
to modify your SQL to the following:
When SQL ImageViewer runs the export, the SQL query it will
run will contain the values from the file i.e.
SELECT ProductPhotoID, LargePhoto FROM
Production.ProductPhoto WHERE ProductPhotoID IN
(56, 75, 89)

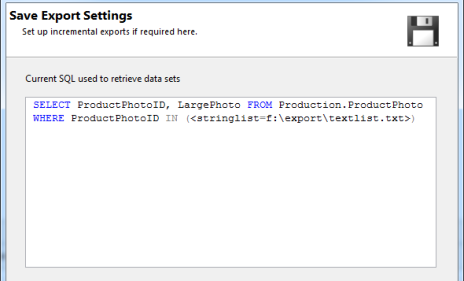

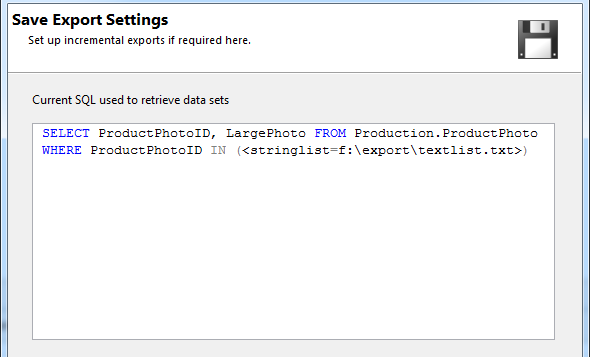

To use a list of text values, use the <stringlist> tag e.g.
Note that each text value in the file need not be enclosed in
single quotes.
Option 3 - use self-incrementing values
In situations where you have a column that auto-increments
each time, and you only need to export new items, the SQL
Image Viewer command line interface can maintain a file that
contains the last processed value for you. That file can then be
used as input to the SQL command.
Assuming that ProductPhotoID is a self-incrementing value in
our example. Say we only want to export new items each time

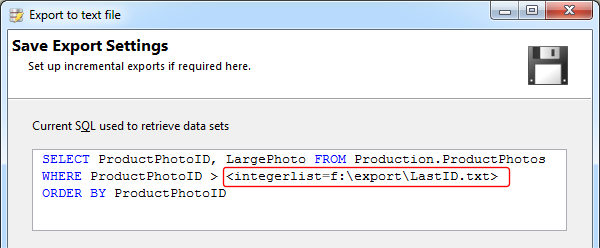

the export runs. First, we need to modify the query to use the
<integerlist> tag, to point to a file that will hold the last
ProductPhotoID value.

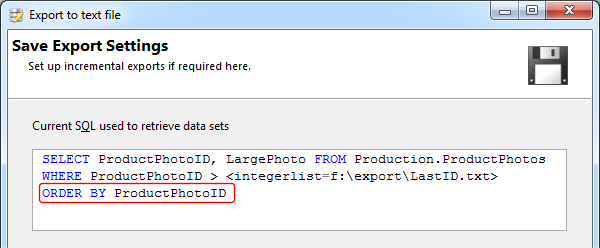

We also need to ensure that our data set is ordered, so that the
last record holds the latest ProductPhotoID value.

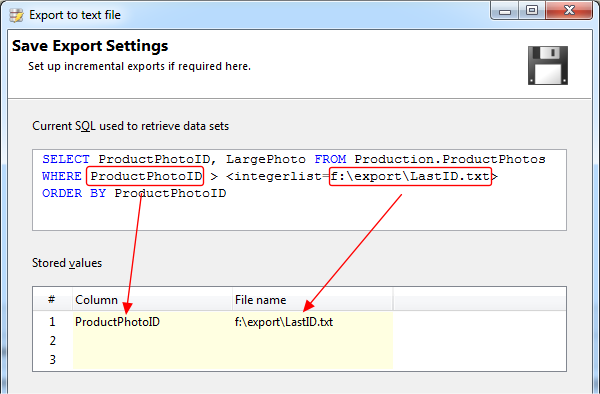

Next, we need to tell SQL Image Viewer that we want to store
the last ProductPhotoID value in the f:\export\LastID.txt file.
We do this by entering the values in the Stored values area.

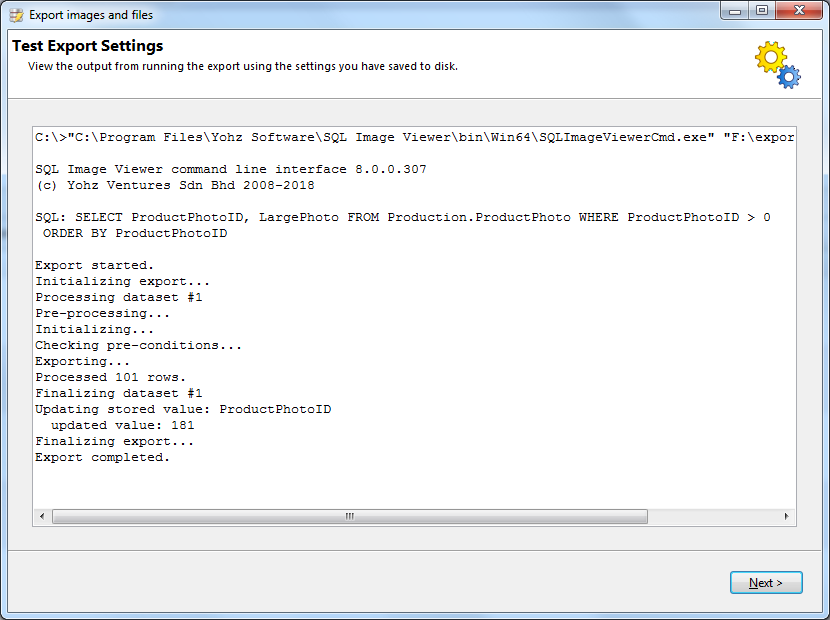

Once you have saved your settings, you can test it by clicking
on the Test settings button. SQL Image Viewer will run an
export using the command line interface and the settings you
have saved, and display the output.
