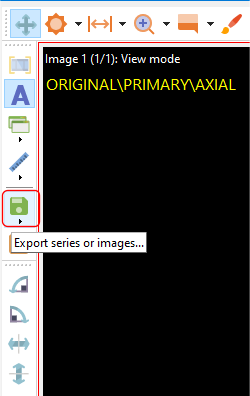

Click on the Export series or images button to export the current set of images.

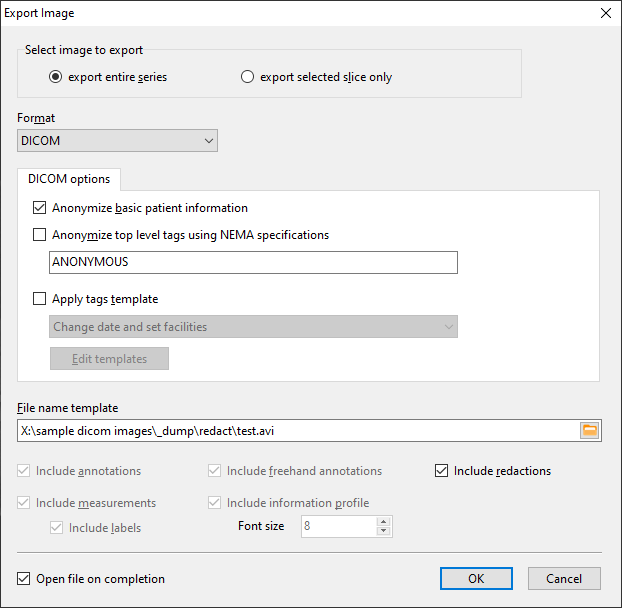

The Export Image window allows you to choose which images to export, and what to include.

You can export the images in one of 4 formats:

If you are exporting to the DICOM format, you can anonymize the top level tags.  The top level tags that are anonymized follows the recommendations outlined here (http://dicom.nema.org/dicom/2013/output/chtml/part15/chapter_E.html#table_E.1-1).

You can also customize values for specific tags.  Please see this section on Tag Templates on how to change the DICOM tag values.

The File name template is the folder and file name template that Easy DICOM Viewer uses to name the exported files.  In the example above, the first file will be named im001_01.dcm, the second file im001_02.dcm etc, and will be created in the f:\export\ folder.

Finally, you can also choose to include measurements, annotations, and redactions in the exported images.

Creating contact sheets

Contact sheets are like a photo gallery, and the images are arranged in the same standard grid format.  You can create contact sheets when exporting to the JPEG and PNG formats.

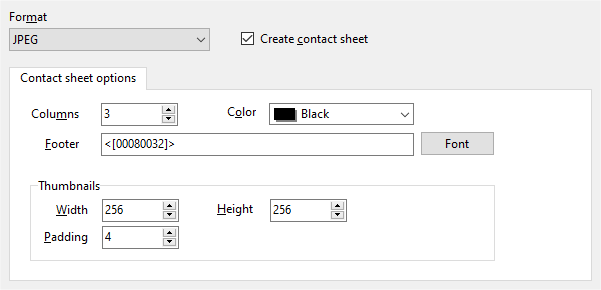

Enter the number of columns to use, the color, and size of the images to display in the contact sheet.

You can also specify what to display at the bottom of each image.  In the example above, the value for the DICOM tag 0008,0032 is displayed.

Exporting to AVI movie files

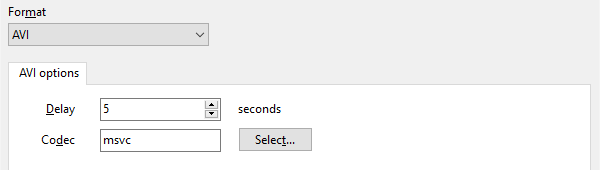

Select the AVI format to export the images to a AVI movie file.

Enter the delay in seconds between each images in the series. You can select different video encoding codecs depending on what has been installed on your computer. Note that Some codecs may only support playback and not encoding.
